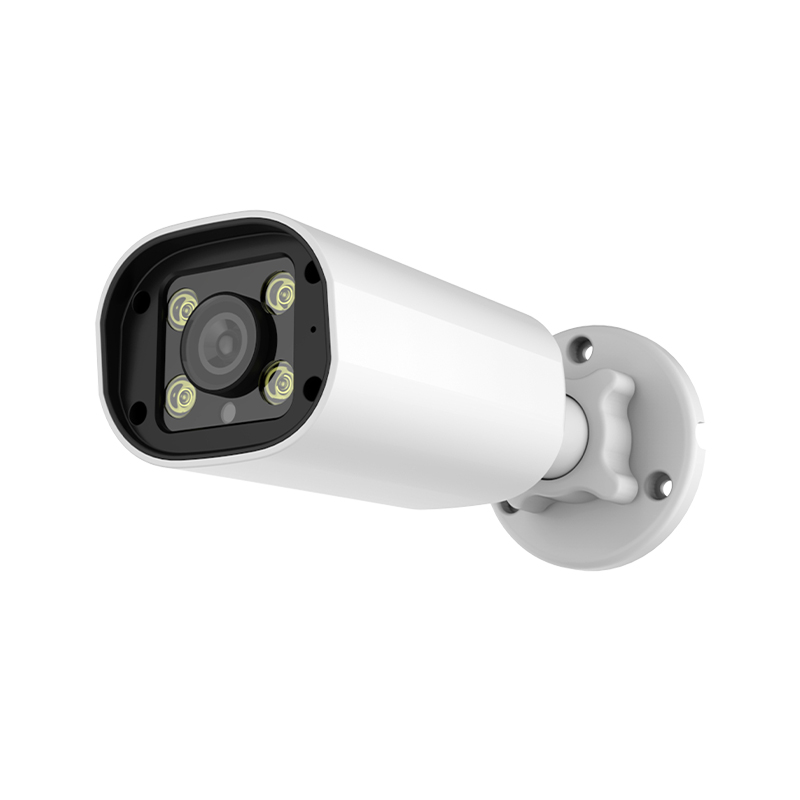

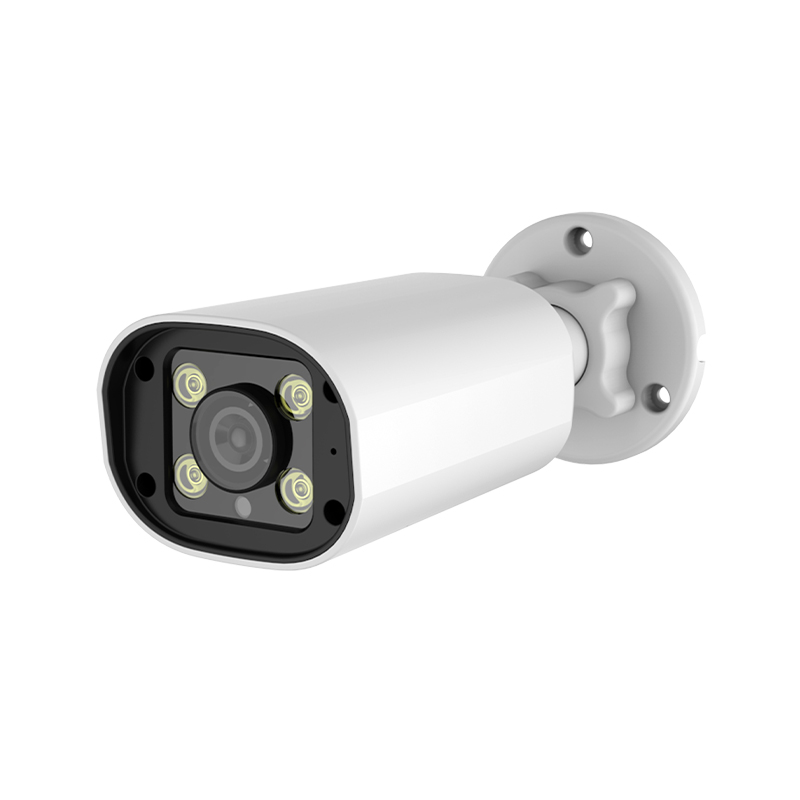

5MP HD IP Dual Light Bullet Camera

CV-XIP04BL5
1.H.265+/H.264
2.Support IR-CUT（Lens, 2.8mm3.6mm,6mm）
3.4pcs warm light Led,Distance:25m
4.Support ONVIF
5. waterproof (IP 66)
POE ADD ($2)
Audio pickup add 0.4USD
two way audio add 1.2USD
Full metal case,always colorful video

Consult

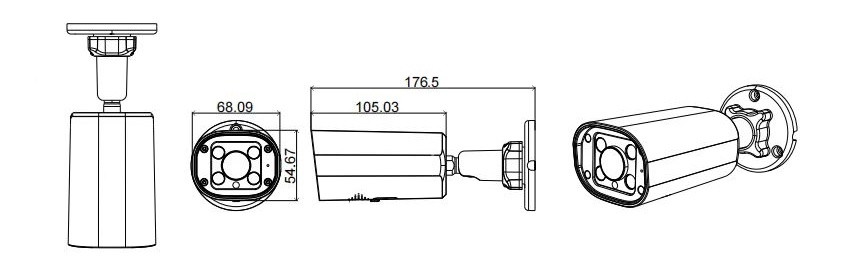

Features Technical Indicators Overall Dimension

● Professional design for HD network camera, small, beautiful and delicate, best for home security.
● Material: aluminum alloy, innovative patented heat dissipation structure, make HD camera can works well under high temperature.
● 5.0 megapixel
● Advanced digital signal processing technology, high brightness imported SMT source, show the best HD video effects in both day and night environment.
● 5.0 Megapixel HD CS lens+ IR-CUT auto switch in day and night,3.6mm,6mm,8mm fixed lens
● 4pcs warm light led, effective night vision distance is 25m, excellent performance in dark environment.
● Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
● ONVIF protocol, can provide the SDK.
Optional back-end products for the system:
IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Model:		CV-XIP04BL5
Camera	Imaging sensor:	5.0MP,H.265+, Mstar SSC377+4336P,1/3″ CMOS
	Scanning mode:	Progressive scanning
	Illumination:	color 0.01Lux@F1.2,black/white:0.005Lux@F1.2, IR on 0 lux
	Lens:	5 megapixel 3.6mm,6mm,8mm fixed focus CS lens
	Day and night switch:	IR-CUT dual optical filters auto switch in day and night
	DNR:	3D-DNR
	IR source:	4pcs warm light led
	Effective night vision distance:	25 meters (measured value without light condition)
	P2P	YES
	Two way audio	Optional
	Waterproof	YES
	WDR	128db
	S/N Ratio	50db
	Privacy mask	4
	shutter speed	1/(10-10000)s
	FTP	YES
Standard compression	Image compression:	H.264
	Video compression:	H.265+/H.265/H.264, support dual-stream, AVI format, support stream 32Kbps ~ 3.5Mpbs adjustable,support CBR/VBR
Image	Max image size:	2592X1944
	Frame rate:	2592X1944@20fps,2560x1440@25fps,3MP/2048*1536@20fps、1080P/720P/D1@25fps
Function	Interface protocol:	HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6
	Intelligent alarm:	Motion detection, Humanoid detection,shadow alarm, network cable break, IP address conflict
	POE	YES (optional),IEEE802.3at/af Standard,PoE/IN:37-57V(15.4W), DC/OUT:12V/1A(12.95W)
	Lightning Protection	Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5.
	features	Support WEB configure, support for OSD, support video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage, supports JPEG capture, provide perfect the SDK development package
Basic parameter	Power input:	DC 12V±10%
	Power consumption:	1W (IR off) / 9.5W (IR on)	1.1W / 9.6W (IR on)
	Work environment:	-40℃ ~ 85℃, humidity is less than 95% (no condensation)
