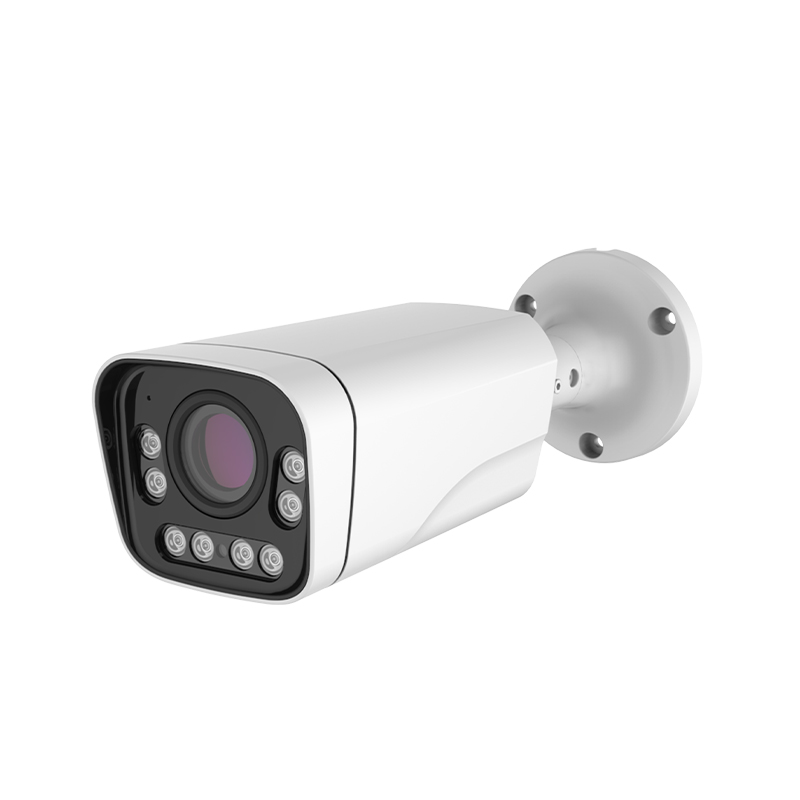

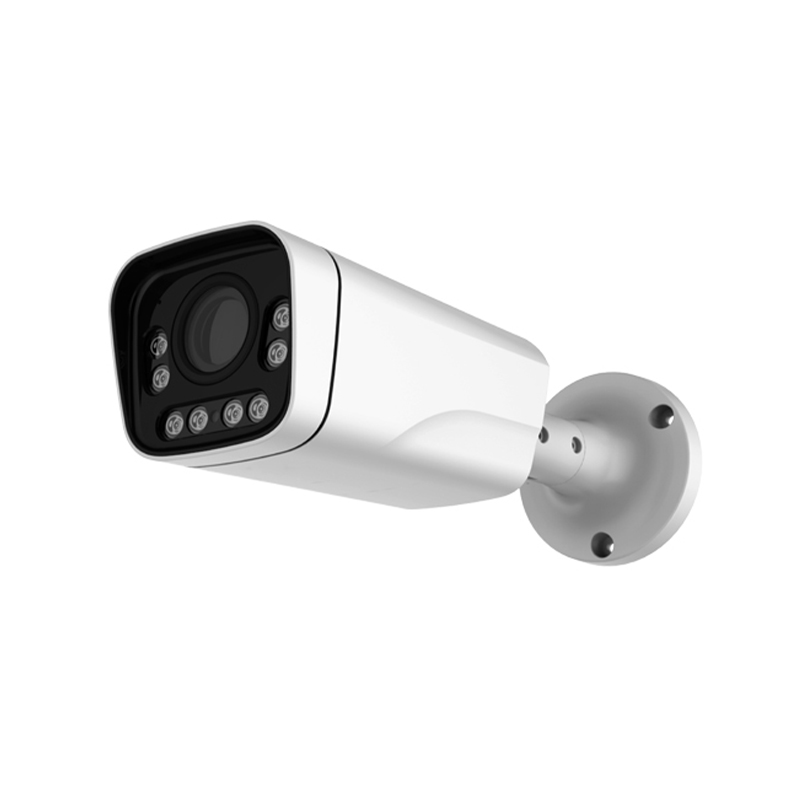

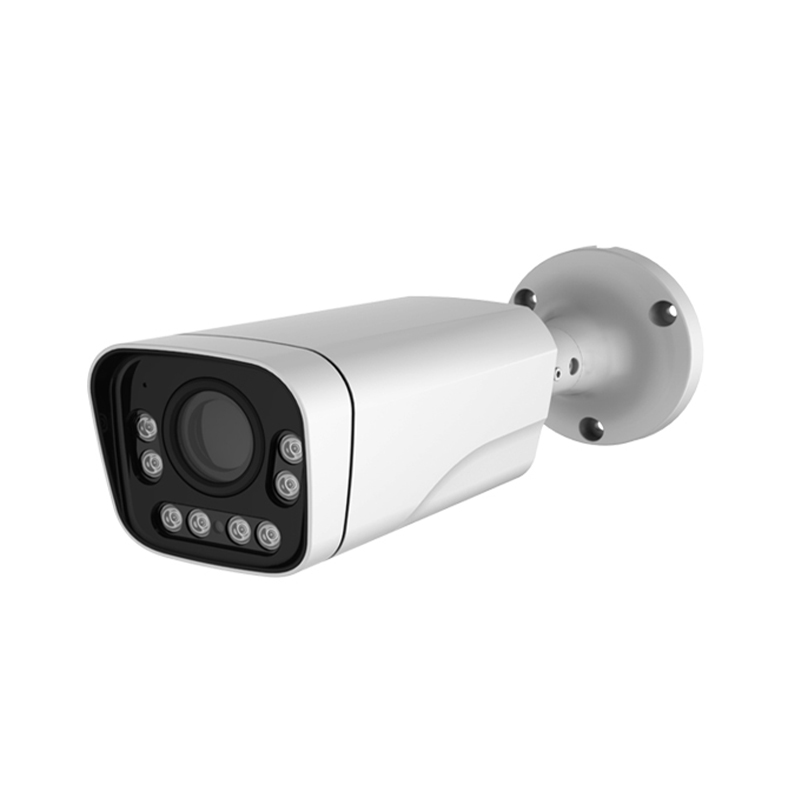

4X Auto Zoom IP Camera

CV-XIPAT828G
5X auto zoom,POE, function, colorful video.
Professional design for HD network camera, small, beautiful and delicate, best for home security.
Material: aluminum alloy, innovative patented heat dissipation structure, make HD camera can works well under high temperature.
8.0MP, H.265+, SSC378DE + GC8613, 1/2.7" CMOS
Advanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.
8.0 Megapixel HD CS lens + IR-CUT auto switch in day and night, 2.8-12mm auto zoom Lens
8pcs warm light LED, effective night vision distance is 50m, excellent performance in dark environment, always colorful video
Support 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.
ONVIF protocol, can provide the SDK.
Optional back-end products for the system:
IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Model:

CV-XIPAT828G

Camera

Imaging sensor:

8.0MP,H.265+, SSC378DE+GC8613, 1/2.7" CMOS

Scanning mode:

Progressive scanning

Illumination:

color 0.01Lux@F1.2,black/white:0.005Lux@F1.2, IR on 0 lux

Lens:

2.8-12mm auto zoom Lens

Day and night  switch:

IR-CUT dual optical filters auto switch in day and night

DNR:

3D-DNR

IR source:

8pcs warm light Led

Effective night vision distance:

50 meters (measured value without light condition)

P2P

YES

Waterproof

YES

WDR

128db

S/N Ratio

50db

Privacy mask

4

shutter speed

1/(10-10000)s

FTP

YES

Standard compression

Image compression:

H.264

Video compression:

H.265+/H.265/H.264, support dual-stream, AVI format, support stream  32Kbps ~ 3.5Mpbs adjustable, support CBR/VBR


Max image size:

3840×2160

Frame rate:

Main stream:8MP 20FPS@3840×216025FPS,3072×20482592×194430FPS@(2560×1440,2304×12961920×10801280×720)                       substream:25FPS@720×480,D1,VGA,640×360

Function

Interface protocol:

HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6

Intelligent alarm:

Humanoid detection,Motion detection, shadow alarm, network cable break, IP address conflict

POE

YES (optional),IEEE802.3at/af Standard

PoE/IN:37-57V(15.4W), DC/OUT:12V/1A(12.95W)

Lightning Protection

Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5.

features

Support WEB configure, support for OSD, support video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage, supports JPEG capture, provide perfect the SDK development package.

Basic parameter

Power input:

DC 12V±10%

Power consumption:

1W (IR off) / 9.5W (IR on)

1.1W / 9.6W (IR on)

Work environment:

-40℃ ~ 85℃, humidity is less than 95% (no condensation)


×
