Key features：
20X optical zoom+10X digital zoom, auto focus
1/2.8” CMOS
5.0MP
True Day/Night, 3D DNR, Digital WDR
Backlight compensation, and auto gain control (AGC)
3D intelligent positioning, 254 programmable presets
Support the P2P on Android, IOS
Vertical 90degree,horizon 360degree
Support ONVIF2.6
H.265+/H.265/H.264 main profile dual-stream encoding, two simultaneous video streams
Standard SDK, CGI，easily to be integrated with other digital systems
Colorful video when day and night,will alarm when detect people.
Support zoom in and out when auto tracking

Model No.		CV-XIP-H6518X
Image sensor		5.0M Pixels Progressive Scan CMOS
Chipset		Mstar SSC30KD+Sony335,1/2.8″CMOS 1/2.9″ CMOS
Signal System		PAL/NTSC
Focal length		20X optical zoom(F=4.8mm -86.4mm)+10X digital zoom
IR LEDS		1pcs Laser IR Leds+8pcs Smart IR Array LEDs and 8pcs White Leds, IR Distance 150m
Aperture Range		F1.5~F1.9
Angle of View		55.3°（Wide）/5.8°（Tele）
Zoom speed		Approx 3s(Optical Wide-Tele)
Image Resolution	Main stream	25921944，1-25fps ；25921520，1-22(30)fps 23041296，1-25(30)fps；19201080，1-25(30)fps
	sub-stream	640480，1-25(30)fps；4803601-25(30)fps；352288，1-25(30)fps；176144，1-25(30)fps
Min. Illumination		Color：0.05Lux@(F1.6，AGC ON) B/W：0.01Lux@(F1.6，AGC ON)
Wide dynamic range		Digital WDR，≥100dB
S / N ratio		≥50dB（AGC OFF）
AGC		Auto / Manual
White balance		Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise Reduction		DNR,3DNR
Exposure mode		Auto/Manual/shutter mode（shutter range variable）
Shutter speed		1/2 - 1/20,000s
Day & Night		Day / Night / External control（IR Cut Filter）
Number of preset		254
Auto tracking		YES
TF card slot		Optional (512G max)
Two way audio		Optional
POE		optional
PTZ function		8 Patrol、8 Pattern
Streams		Dual streams
Bitrate		CBR/VBR, bitrate：32Kbps~10Mbps variable
Video Compression		H.265+/H.265/H.264 Main Profile
Audio Compression		G711A
OSD		Support zoom、camera name、time display，OSD position can be adjusted
APP		Videolink
Intelligent alarm		Humanoid detection,Vehicle detection,Motion detection, shadow alarm, network cable break, IP address conflict
Privacy Zone Masking		4 area
Protocol		TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P, ONVIF2.6
Power Supply		12VDC2A

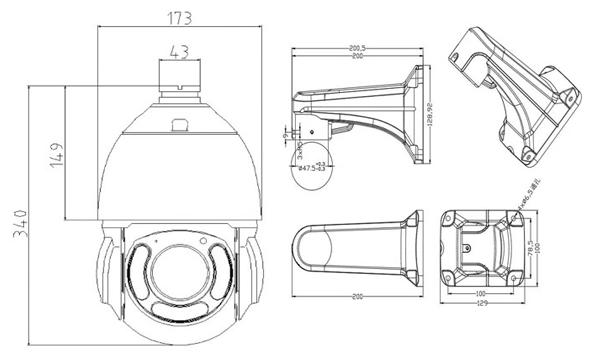

Package size		22.5x26x36cm
Working Temperature		-30°C ~60°C, Humidity≤90%RH
