Design Professional High-end OEM/ODM Paris 4CH HD Network Video Recorder in Suppliers & Maker-Kai Wei Shi

The most easy-to-use ,popular and commercial 4 POE channel embedded NVR, specially design for store, small warehouse, office and family,access HD IPC,provide preview,recording, forward and so on functions. Support mobile phone monitoring, traversal service,achieve APP seconds connection for preview and remote recording playback.

Specification	1 Disk 4CH POE NVR
Model No.	CV-NVR2004P
System Structure	Embedded LINUX design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP network video access.
Video Input	Support 4*12MP HD IPC access, each channel support dual stream access, support auto search,add,recording, preview and without debugging;
Video Input	Access bandwidth 140Mbps;
PoE Interface	4 PoE ports IEEE802.3at,30W max, support 100m transmission
Video Output	1channel HDMI output,1 channel VGA output,homology with HDMI,support
Video Output	Support videolink client preview,APP preview and seconds connection
Video recording resolution	Support 3840×2160 max
Video Capacity	Support H.265+/H.265/H.264 decoding;
Video Capacity	NVR local recording playback support 1CH 12MP/8MP, 4ch 4MP
Audio	Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Videolink audio and video preview and playback;
Storage	1*SATA hard disk interface,support 8TB capacity;
	Support schedule record, motion detection linkage record;
	Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup;
User	Local maximum support for 16 users;
Network Interface	1*RJ45 Ethernet interface, support 10/100M self-adaption;support TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP and so on protocols;

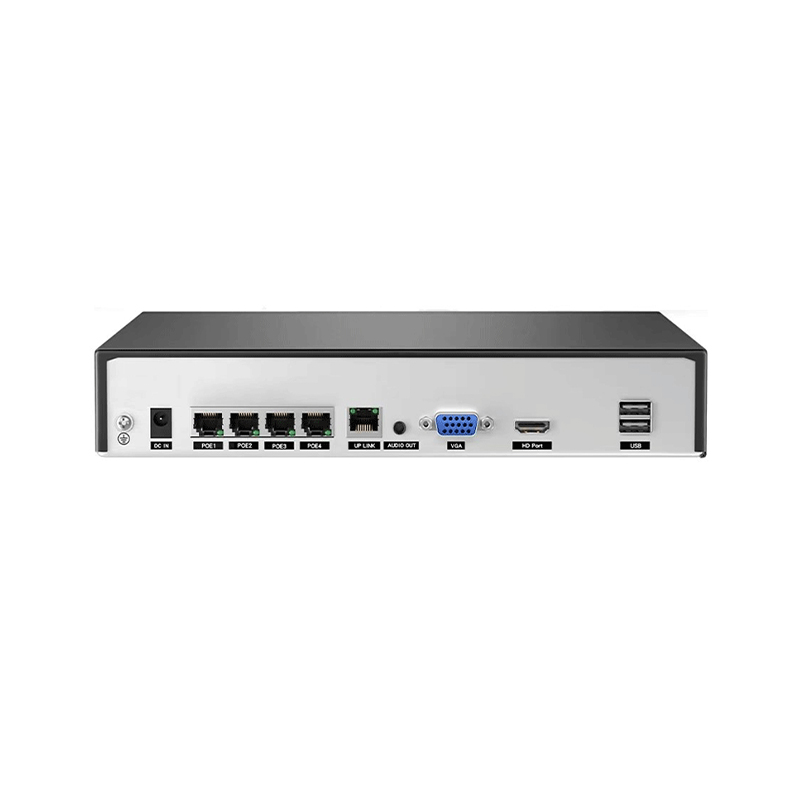

Peripheral Interface	2*USB2.0 interface(rear); support for the mouse, USB upgrade, import and export;

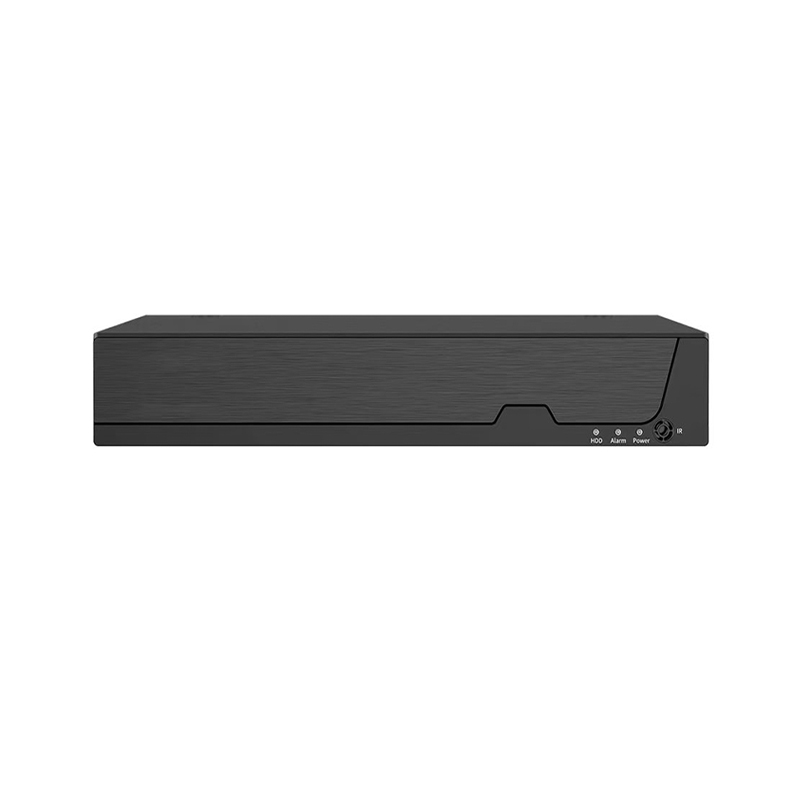

Front Panel	1* power,1record,1network indicator light;
Business Functions	Support preview/recording/forward/remote service, support alarm linkage, support Videolink client remote control software; support videolink cloud service;
Working Temperature	-10℃～＋55℃
Working Humidity	10%～90%
Power Supply	DC +12V/2A power
Optional	Support buzzer
