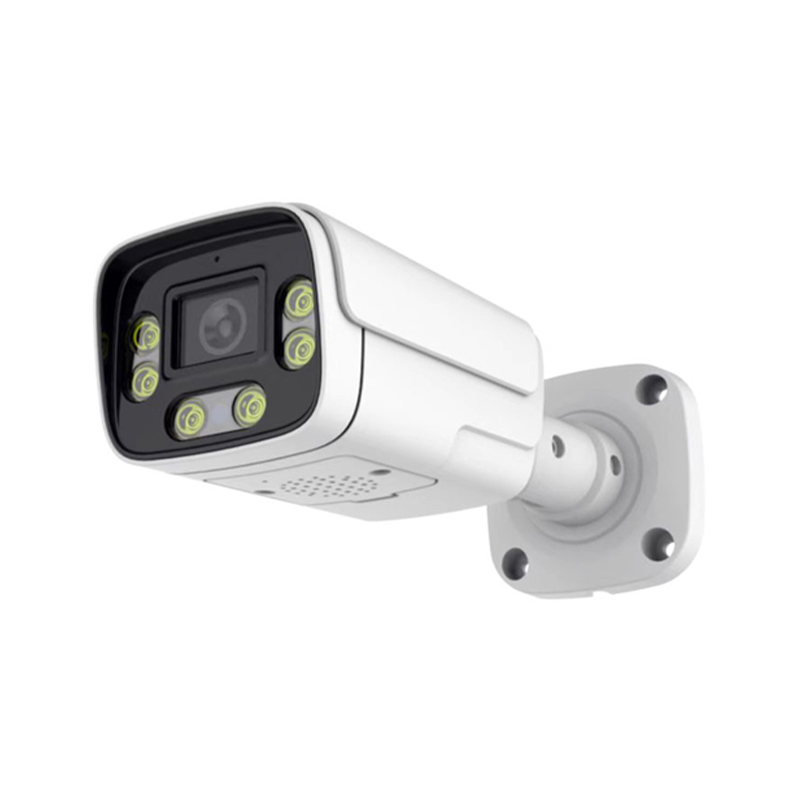

Colorful Video IP Camera

Model:

CV-XIP06BL5

Camera

Imaging sensor:

5.0MP,H.265+, Mstar SSC377+4336P,1/3″ CMOS

Scanning mode:

Progressive scanning

Illumination:

color 0.01Lux@F1.2,black/white:0.005Lux@F1.2, IR on 0 lux

Lens:

5 megapixel 3.6mm,6mm,8mm fixed focus CS lens

Day and night  switch:

IR-CUT dual optical filters auto switch in day and night

DNR:

3D-DNR

IR source:

6pcs warm light led

Effective night vision distance:

25 meters (measured value without light condition)

P2P

NO

Two way audio

Optional

Waterproof

YES

WDR

128db

S/N Ratio

50db

Privacy mask

4

shutter speed

1/(10-10000)s

FTP

YES

Standard compression

Image compression:

H.264

Video compression:

H.265+/H.265/H.264, support dual-stream, AVI format, support stream  32Kbps ~ 3.5Mpbs adjustable,support CBR/VBR


Max image size:

2592X1944

Frame rate:

2592X1944@20fps,2560x1440@25fps,3MP/2048*1536@20fps、1080P/720P/D1@25fps

Function

Interface protocol:

HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6

Intelligent alarm:

Motion detection, Humanoid detection,shadow alarm, network cable break, IP address conflict

POE

YES (optional),IEEE802.3at/af Standard,PoE/IN:37-57V(15.4W), DC/OUT:12V/1A(12.95W)

Lightning Protection

Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5, the international standard IEC61000-4-5.

features

Support WEB configure, support for OSD, support video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage, supports JPEG capture, provide perfect the SDK development package.

Basic parameter

Power input:

DC 12V±10%

Power consumption:

1W (IR off) / 9.5W (IR on)

1.1W / 9.6W (IR on)

Work environment:

-40℃ ~ 85℃, humidity is less than 95% (no condensation)
