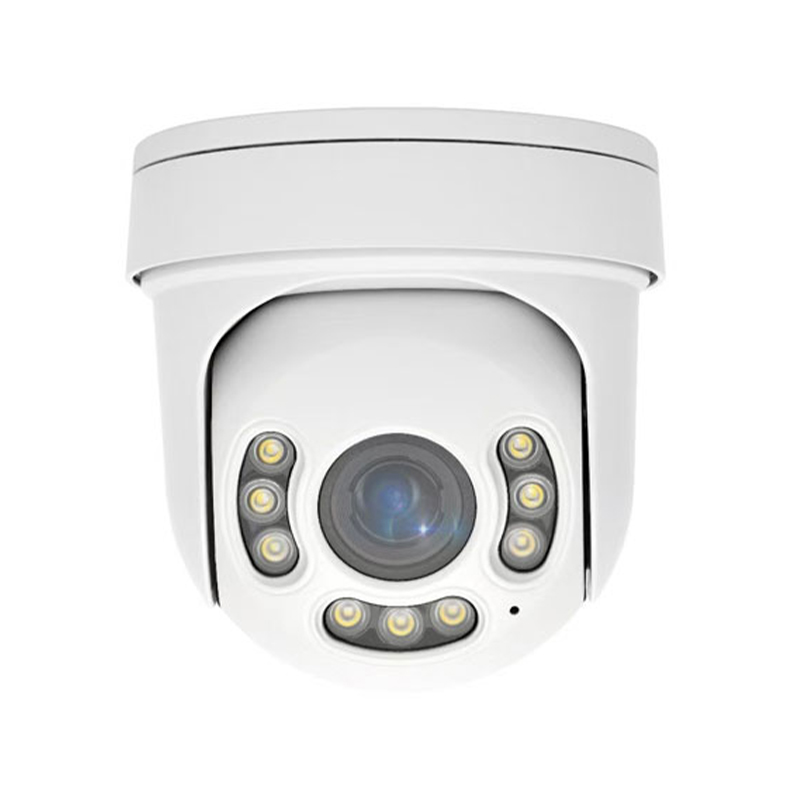

Model No. | CV-XIP8935X |
Image sensor | 8.0M Pixels Progressive Scan CMOS |
Chipset | H.265+,SSC378DE+GC8613, 1/2.7" CMOS |
Signal System | PAL/NTSC |
Focal length | 2.8-12mm,5X |
LEDS | 9pcs IR led, 9pcs white led, IR Distance 35M |
Aperture Range | F1.7~F3.0 |
Angle of View | 113.9°（Wide）/34.1°（Tele） |
Zoom speed | Approx 3s(Optical Wide-Tele) |
Image | 3840x2160 |
Main stream:20@FPS(3840×2160), 25FPS@(3072×2048）30FPS@（2592×1944, 2560×1440, 2304×1296, 1920×1080, 1280×720) substream:25FPS@720×480,D1,VGA,640×360 | |
Min. Illumination | Color：0.01Lux@(F1.6, AGC ON) B/W：0.001Lux@(F1.6, AGC ON) |
Wide dynamic range | Digital WDR, ≥100dB |
S / N ratio | ≥50dB（AGC OFF） |
AGC | Auto / Manual |
White balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
Digital noise Reduction | DNR, 3DNR |
Exposure mode | Auto/Manual/shutter mode（shutter range variable） |
Shutter speed | 1/2 - 1/20,000s |
Day & Night | Day / Night / External control（IR Cut Filter） |
POE | YES |
TF card slot | Optional （128G Max） |
Two way audio | YES |
AI function | Humanoid detection, Vehicle detection |
3D Positioning | Click centering, Zoom by mouse dragging |
Streams | Dual streams |
Bitrate | CBR/VBR, bitrate：32Kbps~10Mbps variable |
Video Compression | H.265/H.264 Main Profile |
Audio Compression | G711 |
OSD | Support zoom、camera name、time display, OSD position can be adjusted |
P2P | Android、IOS |
Motion detect | Support |
Privacy Zone Masking | 4 privacy masks programmable |
Protocol | TCP/IP, HTTP, NTP, IGMP, DHCP, UDP, SMTP, RTP，RTSP, ARP, DDNS, DNS, P2P, ONVIF2.6 |
Power Supply | DC12V2A |

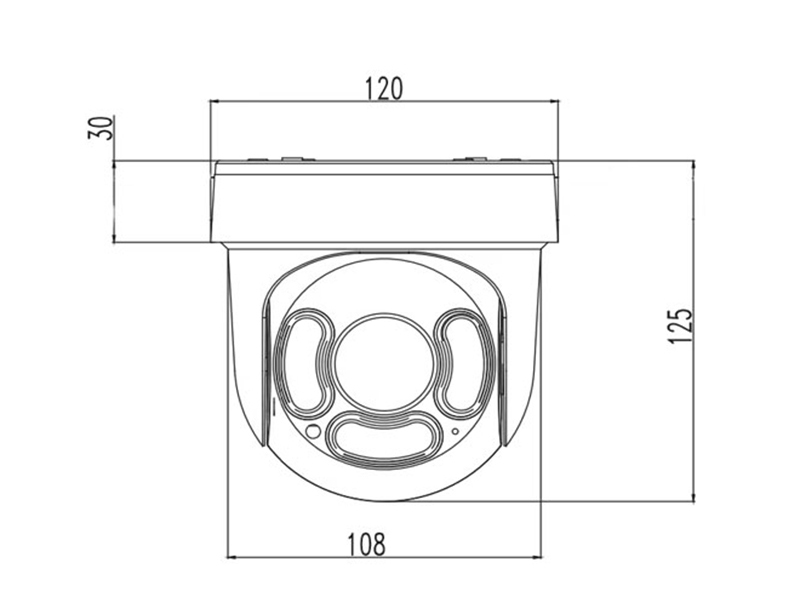

Package size | 150x150x130mm |
Working Temperature | -30°C ~60°C, Humidity≤90%RH |
