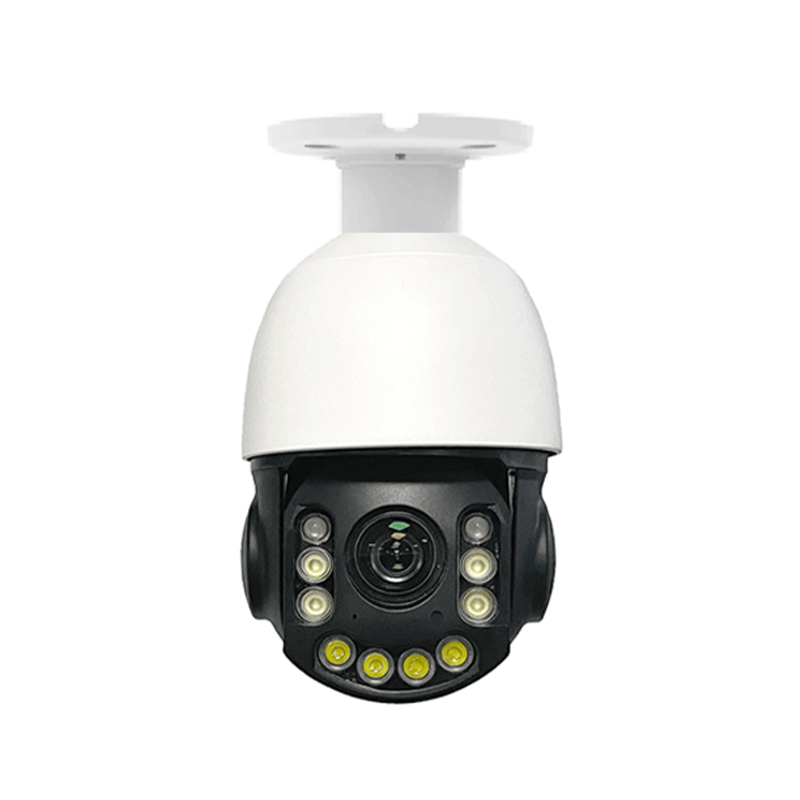

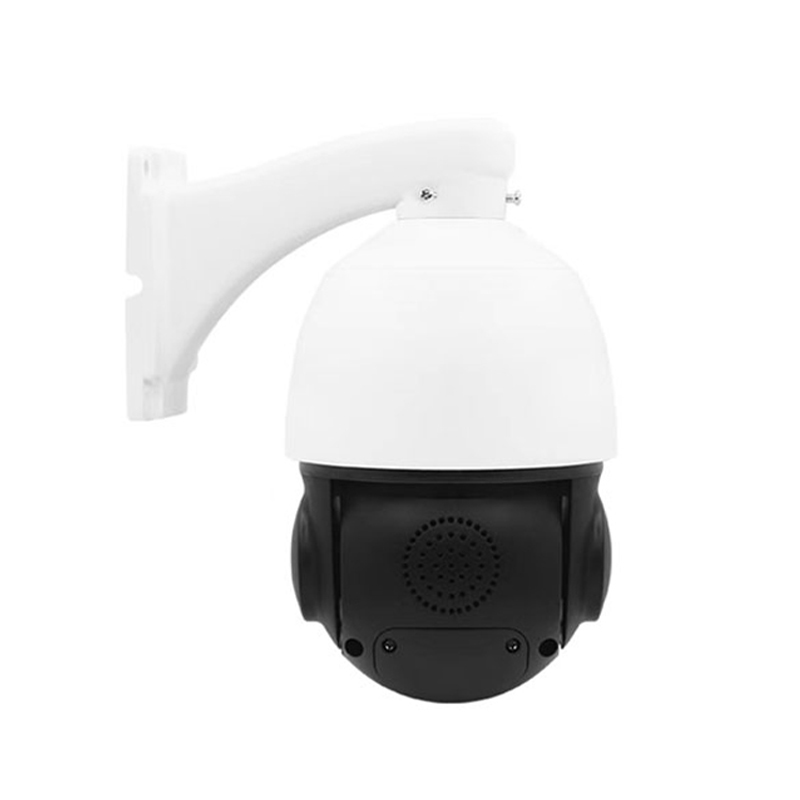

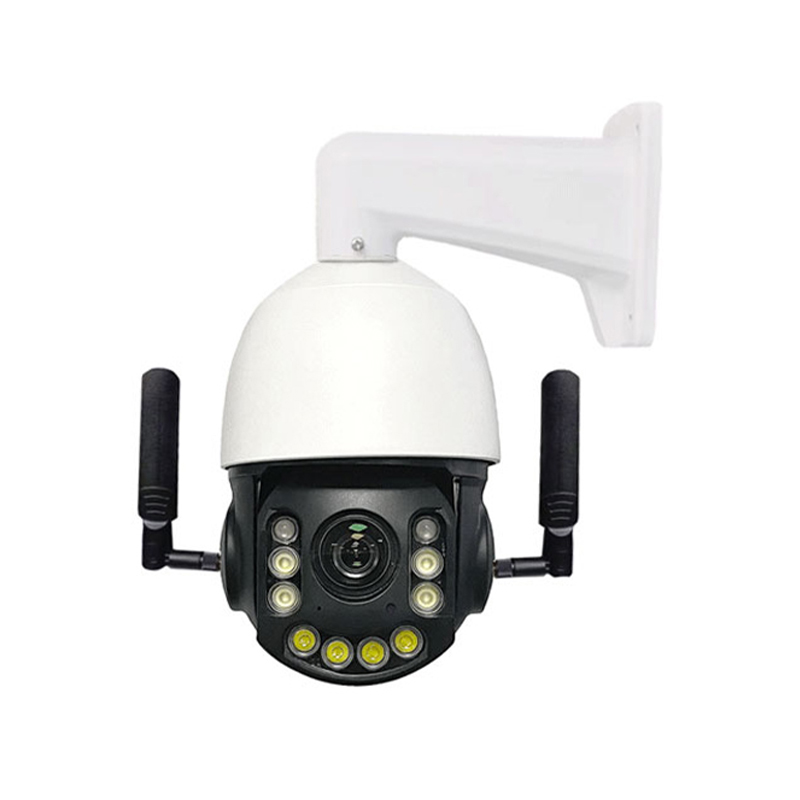

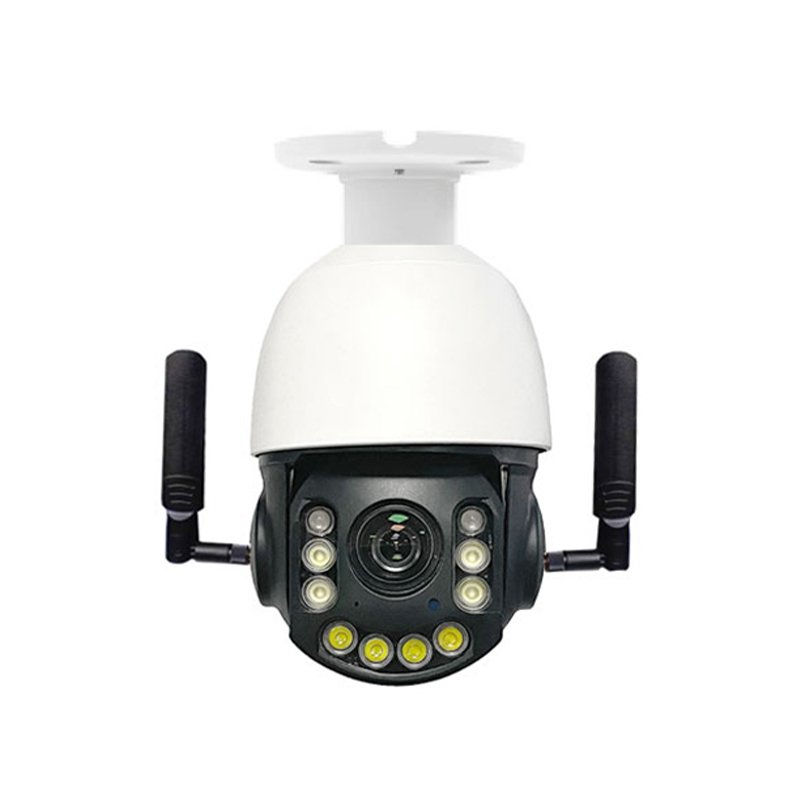

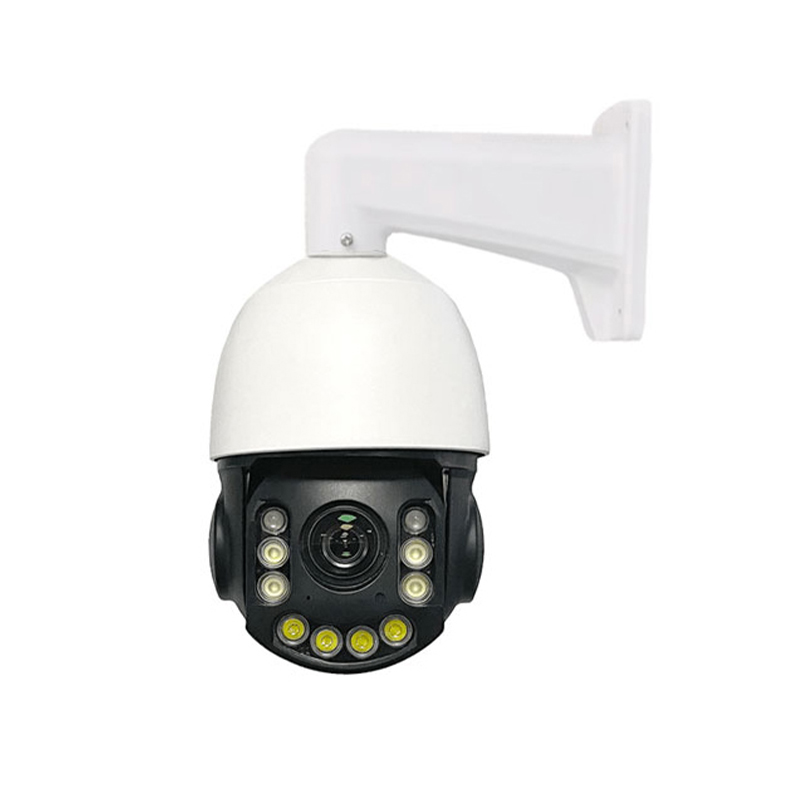

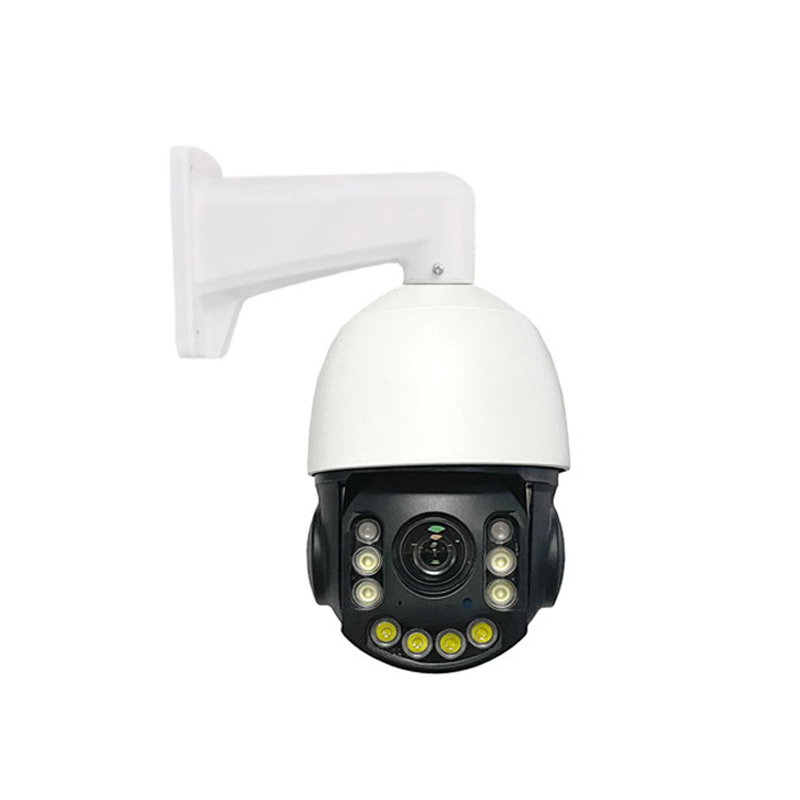

20X Auto Tracking IP PTZ Camera

Model No.

CV-XIP-H4518X

Image sensor

5.0M Pixels Progressive Scan CMOS

Chipset

Mstar SSC30KD+Sony335,1/2.8″CMOS

1/2.9″ CMOS

Signal System

PAL/NTSC

Focal length

20X optical zoom(F=4.8mm -86.4mm)+10X digital zoom

IR LEDS

2pcs Laser IR Leds+8pcs Smart IR Array LEDs and 8pcs White Leds,

IR Distance 150m

Aperture Range

F1.5~F1.9

Angle of View

55.3°（Wide）/5.8°（Tele）

Zoom speed

Approx 3s(Optical Wide-Tele)

Image Resolution

Main stream

2592*1944, 1-25fps, 2592*1520, 1-22(30)fps 2304*1296, 1-25(30)fps, 1920*1080, 1-25(30)fps

sub-stream

640*480, 1-25(30)fps, 480*3601-25(30)fps, 352*288, 1-25(30)fps, 176*144，1-25(30)fps

Min. Illumination

Color：0.05Lux@(F1.6, AGC ON) B/W：0.01Lux@(F1.6, AGC ON)

Wide dynamic range

Digital WDR, ≥100dB

S / N ratio

≥50dB（AGC OFF）

AGC

Auto / Manual

White balance

Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp

Digital noise Reduction

DNR,3DNR

Exposure mode

Auto/Manual/shutter mode（shutter range variable）

Shutter speed

1/2 - 1/20,000s

Day & Night

Day / Night / External control（IR Cut Filter）

Number of preset

254

Auto tracking

YES

TF card slot

Optional (512G max)

Two way audio

Optional

POE

optional

PTZ function

8 Patrol、8 Pattern

Streams

Dual streams

Bitrate

CBR/VBR, bitrate：32Kbps~10Mbps variable

Video Compression

H.265+/H.265/H.264 Main Profile

Audio Compression

G711A

OSD

Support zoom、camera name、time display，OSD position can be adjusted

APP

Videolink

Intelligent alarm

Humanoid detection,Vehicle detection,Motion detection, shadow alarm,

network cable break, IP address conflict

Privacy Zone Masking

4 area

Protocol

TCP/IP, HTTP,  NTP, IGMP,  DHCP, UDP, SMTP，RTP, RTSP, ARP, DDNS, DNS, P2P, ONVIF2.6

Power Supply

12VDC2A

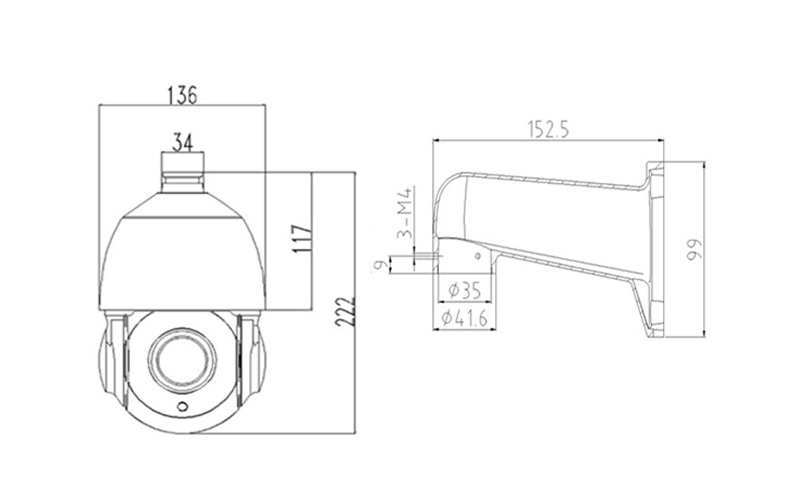

Package size

24x17.5x28.5cm

Working Temperature

-30°C ~60°C, Humidity≤90%RH
