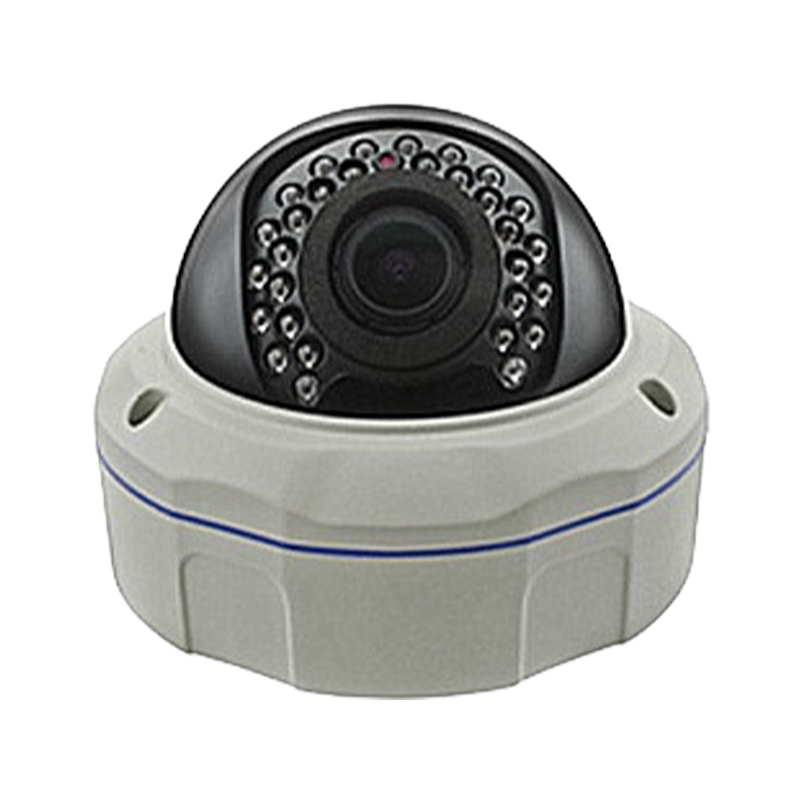

5MP HD IP IR Auto Zoom Dome Camera (30 IR LED)

5MP HD IP IR Auto Zoom Dome Camera (30 IR LED)

CV-XIPAT2016HWS26
Vandal-proof Metal Dome
1.H.265+/H.264,CMOS
2.Support IR-CUT（Auto Focus Motorized Lens 2.8~12mm）
3.30pcs IR LED, IR Distance:40m
4.Support ONVIF
5. vandalproof
6. POE ADD ($2)

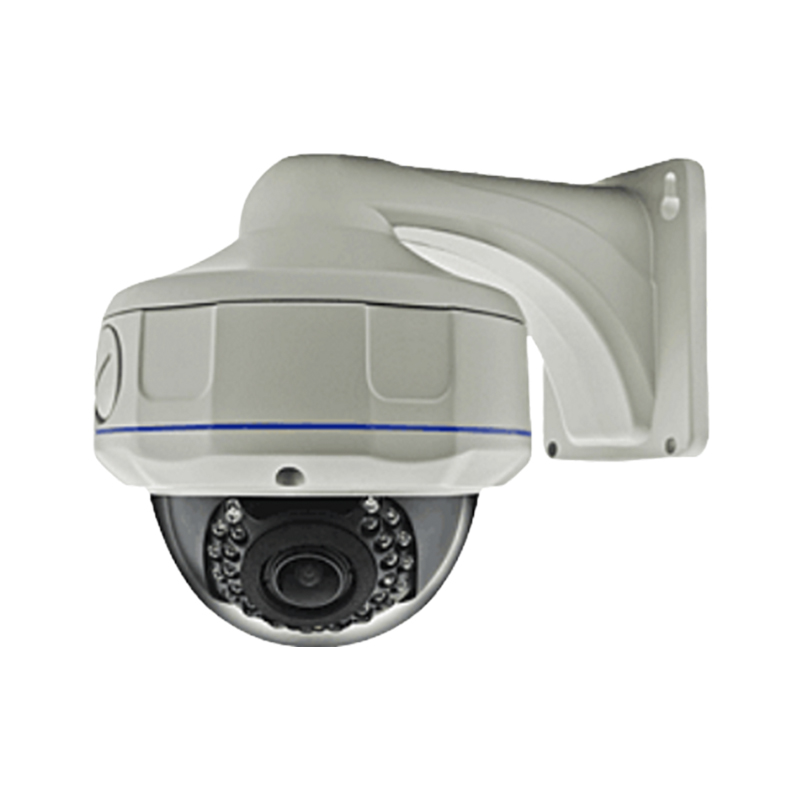

Bracket ($5)
Full metal case

Consult

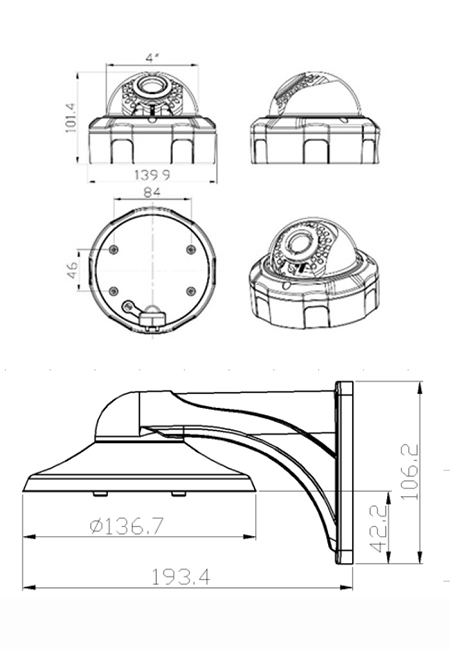

Features Technical Indicators Overall Dimension

lProfessional design for HD network camera, small, beautiful and delicate, best for home security.

lMaterial: aluminum alloy, innovative patented heat dissipation structure, make HD camera can works well under high temperature.

l5.0 megapixel

lAdvanced digital signal processing technology, high brightness imported SMT IR source, show the best HD video effects in both day and night environment.

l5.0 Megapixel HD CS lens+ IR-CUT auto switch in day and night, 2.8-12mm Auto lens

l30 IR LED, effective night vision distance is 40m, excellent performance in dark environment.

lSupport 3D DNR, auto white balance, auto electronic shutter, auto electronic gain, real color reproduction, high resolution image.

lONVIF protocol, can provide the SDK.

Optional back-end products for the system:
IE browse software, P2P HD remote monitoring management software (one key realize remote control without complicated settings), Embedded HD NVR, NVR control keyboard, CMS HD network surveillance platform management software, High-definition surveillance analysis software.

Model:		CV-XIPAT2016HWS26
Camera	Imaging sensor:	5.0MP,H.265+,Mstar SSC377D+GC4653,1/3″ CMOS
	Scanning mode:	Progressive scanning
	Illumination:	color 0.01Lux@F1.2,black/white:0.005Lux@F1.2, IR on 0 lux
	Lens:	Standard with 5MP Auto Focus Motorized Lens 2.8-12mm
	Day and night switch:	IR-CUT dual optical filters auto switch in day and night
	DNR:	3D-DNR
	IR source:	30pcs IR Led
	Effective night vision distance:	40 meters (measured value without light condition)
	P2P	YES
	WDR	128db
	S/N Ratio	50db
	Privacy mask	4
	shutter speed	1/(10-10000)s
	Email function	YES
	FTP	YES
Standard compression	Image compression:	H.264
	Video compression:	H.265+/H.265/H.264, support dual-stream, AVI format; support stream 32Kbps ~ 3.5Mpbs adjustable;support CBR/VBR
Image	Max image size:	2592X1944
	Frame rate:	2592X1944@25fps,2560x1440@25fps,3MP/2048*1536@20fps、1080P/720P/D1@25fps
Function	Interface protocol:	HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF2.6
	Intelligent alarm:	Humanoid detection,Motion detection, shadow alarm, network cable break, IP address conflict
	POE	YES (optional),IEEE802.3at/af Standard PoE/IN:37-57V(15.4W), DC/OUT:12V/1A(12.95W)
	Lightning Protection	Power, network, POE comprehensive lightning protection, in line with national standards GB/T17626.5,
	features	Support WEB configure, support for OSD, support video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; provide perfect the SDK development package;
Basic parameter	Power input:	DC 12V±10%
	Power consumption:	1W (IR off) / 9.5W (IR on)	1.1W / 9.6W (IR on)
	Work environment:	-40℃ ~ 85℃, humidity is less than 95% (no condensation)
