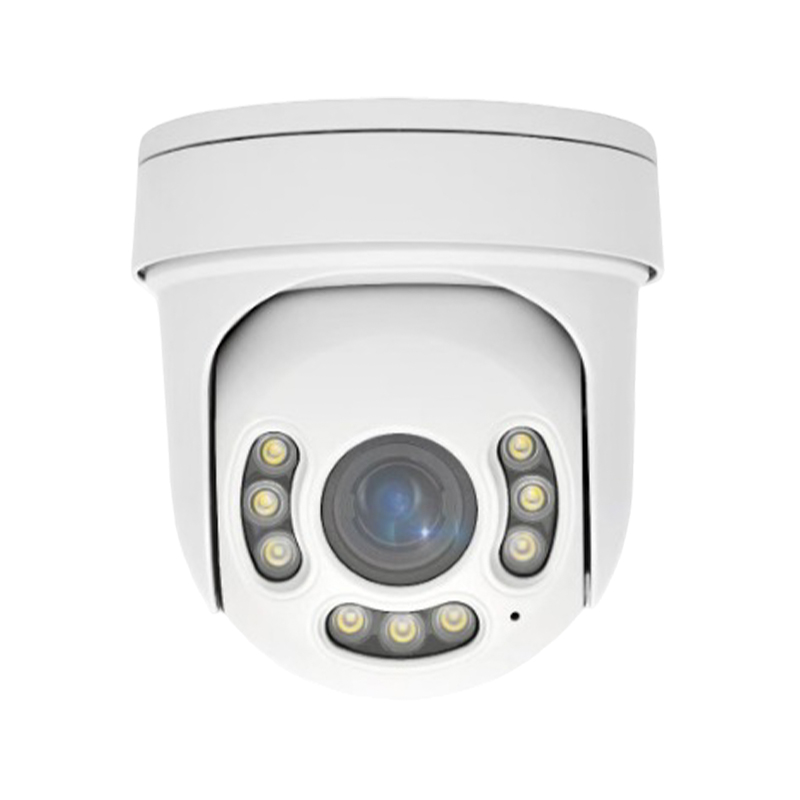

Waterproof 5MP 3 inch HD IP 5X PTZ Camera

CV-XIP5935X
●9pcs IR LEDs and 9pcs white leds, Distance 35m
●5x optical zoom(F=2.8-12mm)
●Horizontal Rotation Speed 0.01°～40°/s, Vertical rotation speed 0.01°～40°/s
●Ceiling bracket and wall mount
●ONVIF protocol ,Support most NVR, such as Hikvision,Dahua,XM
●SUPPORT P2P,mobile remote&3D positioning
●Support POE, Two way audio
TF card slot add $1
●Preset cruise, pattern scanning,area scanning, 355°horizontal scanning
●Housing：Aluminum
●Power Supply：DC12V-2A
IP66, 3inch

Consult

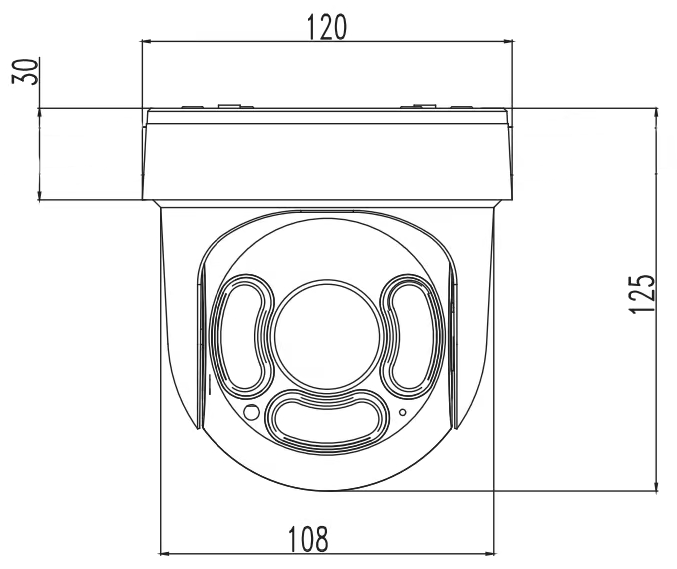

Features Technical Indicators Overall Dimension

5X optical zoom, auto focus
1/3” CMOS
5.0MP
True Day/Night, 3D DNR, Digital WDR
Backlight compensation, and auto gain control (AGC)
3D intelligent positioning
Support the P2P on Android, IOS
Vertical 90degree,horizon 355degree
Support ONVIF
H.265/H.264 main profile & dual-stream encoding, simultaneous video streams
Standard SDK, CGI，easily to be integrated with other digital systems
Video can be always colorful

Model No.	CV-XIP5935X
Image sensor	5.0M Pixels Progressive Scan CMOS
Chipset	Mstar SSC377D+GC4653,1/3” CMOS
Chipset	Mstar SSC377D+GC4653,1/3” CMOS
Signal System	PAL/NTSC
Focal length	2.8-12mm,5X
IR LEDS	9pcs IR led, 9pcs white led, IR Distance 35M
Aperture Range	F1.7~F3.0
Angle of View	113.9°（Wide）/34.1°（Tele）
Zoom speed	Approx 3s(Optical Wide-Tele)
Image	2592X1944
Image	2592X1944@25fps,2560x1440@25fps,3MP/2048*1536@20fps,1080P/720P/D1@25fps
Min. Illumination	Color：0.01Lux@(F1.6，AGC ON) B/W：0.001Lux@(F1.6，AGC ON)
Wide dynamic range	Digital WDR，≥100dB
S / N ratio	≥50dB（AGC OFF）
AGC	Auto / Manual
White balance	Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
Digital noise Reduction	DNR,3DNR
Exposure mode	Auto/Manual/shutter mode（shutter range variable）
Shutter speed	1/2 - 1/20,000s
Day & Night	Day / Night / External control（IR Cut Filter）
POE	YES
TF card slot	Optional （128G Max）
Two way audio	YES
3D Positioning	Click centering, Zoom by mouse dragging
Streams	Dual streams
Bitrate	CBR/VBR, bitrate：32Kbps~10Mbps variable
Video Compression	H.265/H.264 Main Profile
Audio Compression	G711
OSD	Support zoom、camera name、time display，OSD position can be adjusted
P2P	Android、IOS
Intelligent alarm	Humanoid detection,Vehicle detection,Motion detection, shadow alarm,
Intelligent alarm	network cable break, IP address conflict
Privacy Zone Masking	4 privacy masks programmable
Protocol	TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS，P2P,ONVIF2.6
Power Supply	DC12V2A
Package size	150x150x130mm
Working Temperature	-30°C ~60°C, Humidity≤90%RH
