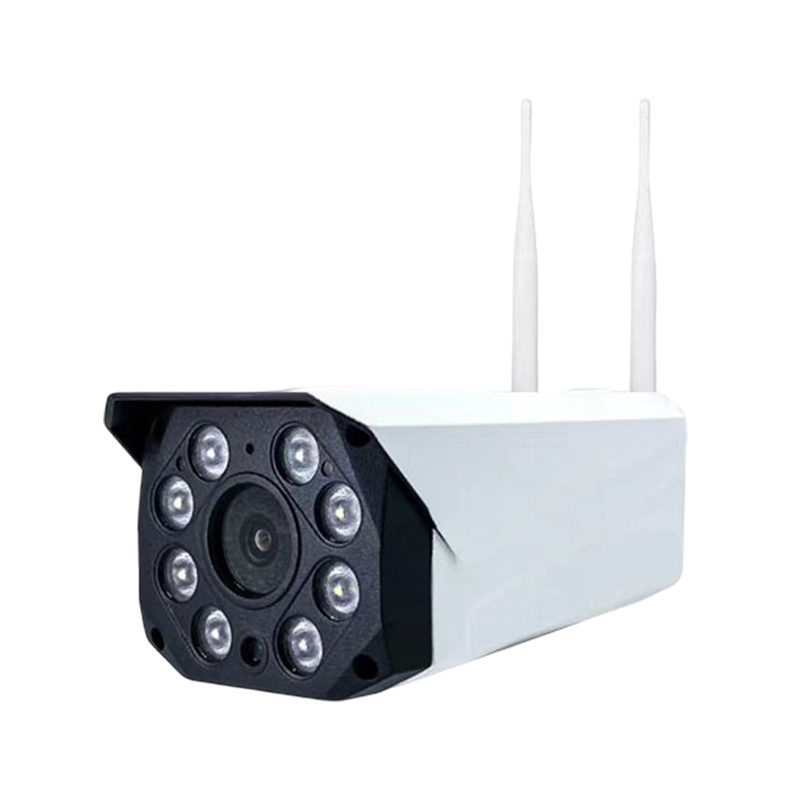

Model: | CV-XIP824G | ||
Camera | Imaging sensor: | 5MP,H.265+,Mstar SSC377D+GC4653,1/3″CMOS | |
Scanning mode: | Progressive scanning | ||
Illumination: | color 0.01Lux@F1.2,black/white:0.005Lux@F1.2, IR on 0 lux | ||
Lens: | 5 megapixel 3.6mm,6mm fixed lens | ||
Day and night switch: | IR-CUT dual optical filters auto switch in day and night | ||
DNR: | 3D-DNR | ||
IR source: | 8pcs IR LED | ||
Effective night vision distance: | 50 meters (measured value without light condition) | ||
P2P | YES | ||
Waterproof | YES | ||
Two way audio | YES | ||
4G | YES | ||

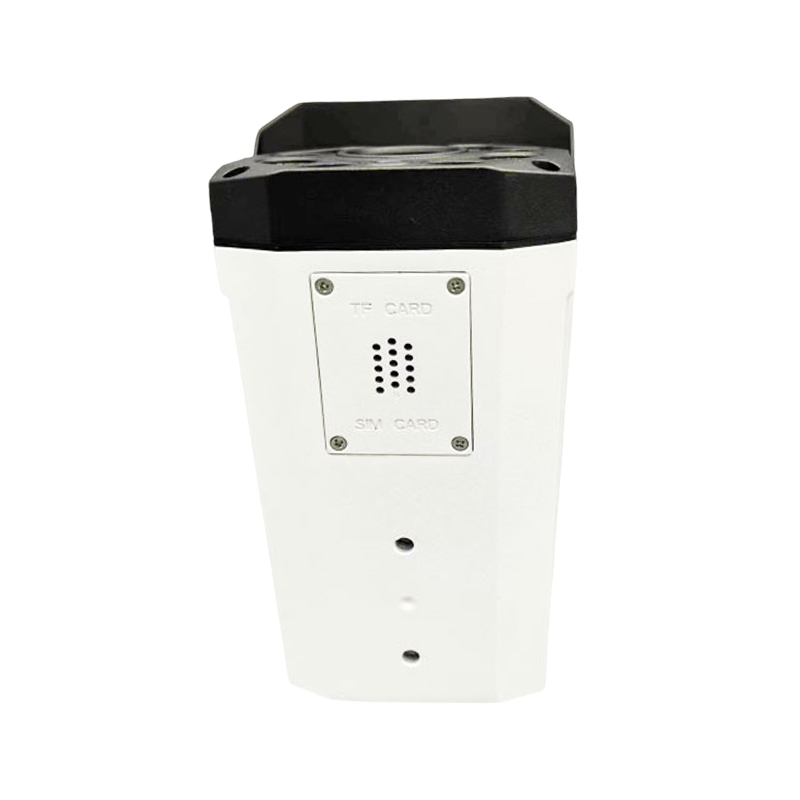

SD Card slot | YES(Support 128G at most) | ||
Standard compression | Image compression: | H.264 | |
Video compression: | H.265/H.264, support dual-stream, AVI format; support stream 32Kbps ~ 3.5Mpbs adjustable;support CBR/VBR | ||
Image | Max image size: | 2592X1944 | |
Frame rate: | 2592X1944@25fps,2560x1440@25fps,3MP/2048*1536@20fps、1080P/720P/D1@25fps | ||
Function | Interface protocol: | HTTP/RTSP/FTP/PPPOE/DHCP/DDNS/NTP/ONVIF | |
Intelligent alarm: | Motion detection,Human detection,shadow alarm, network cable break, IP address conflict,FTP | ||
features | Support WEB configure, support for OSD, support video transmission,support mobile surveillance, support for mobile detection alarm center after the screen pop-up reminders and linkage; supports JPEG capture; provide perfect the SDK development package; | ||
Basic parameter | Power input: | DC 12V±10% | |
Power consumption: | 1W (IR off) / 9.5W (IR on) | 1.1W / 9.6W (IR on) | |
Work environment: | -40℃ ~ 85℃, humidity is less than 95% (no condensation) | ||
