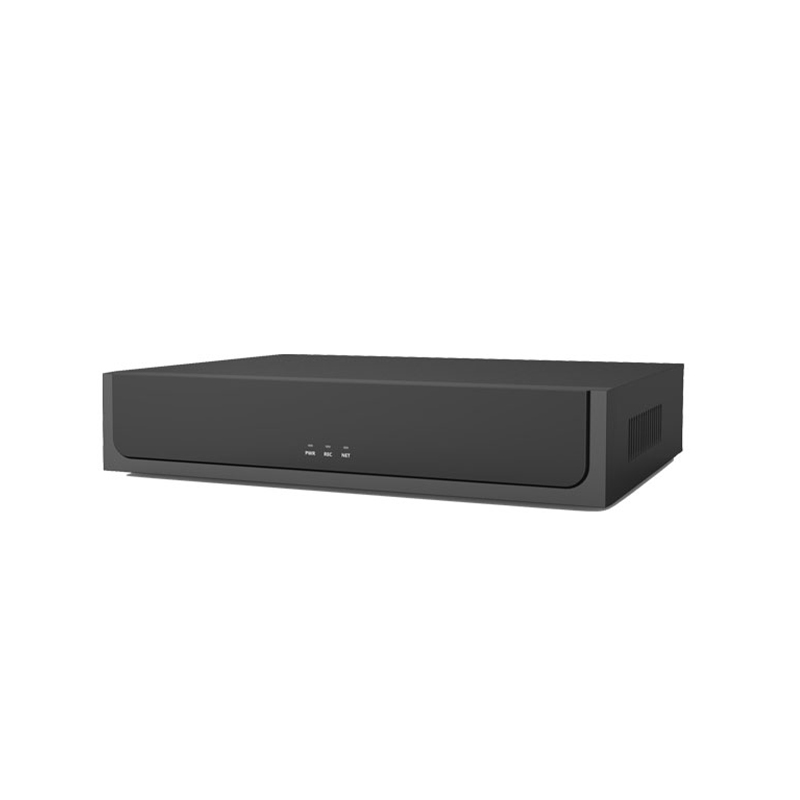

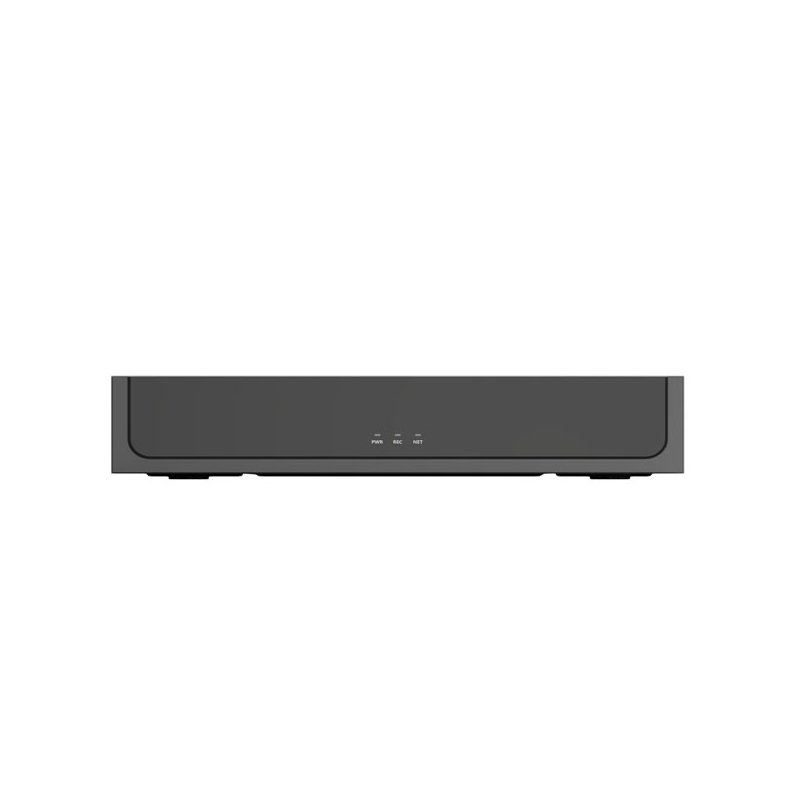

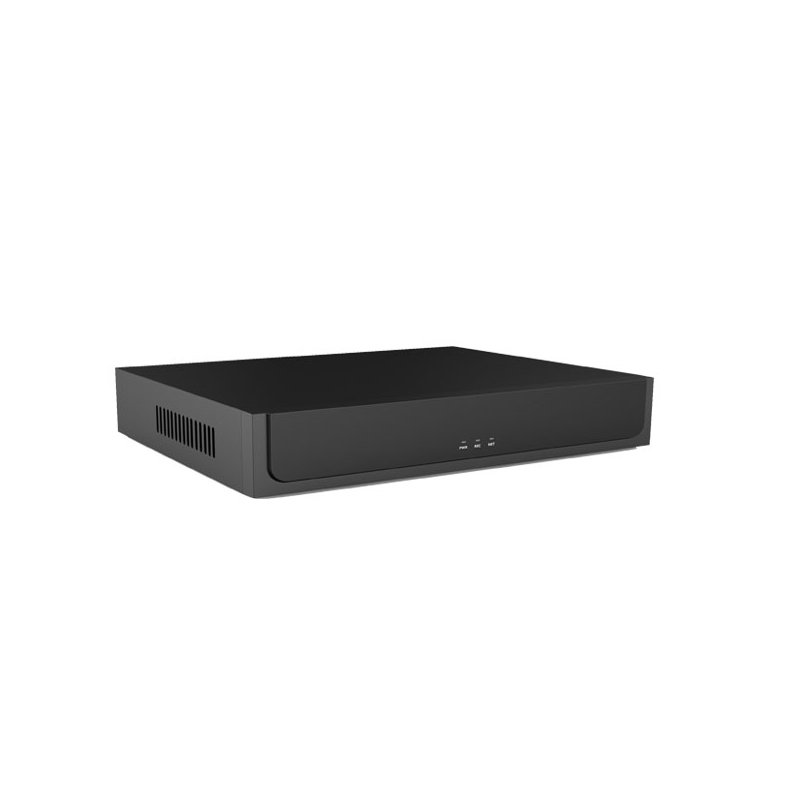

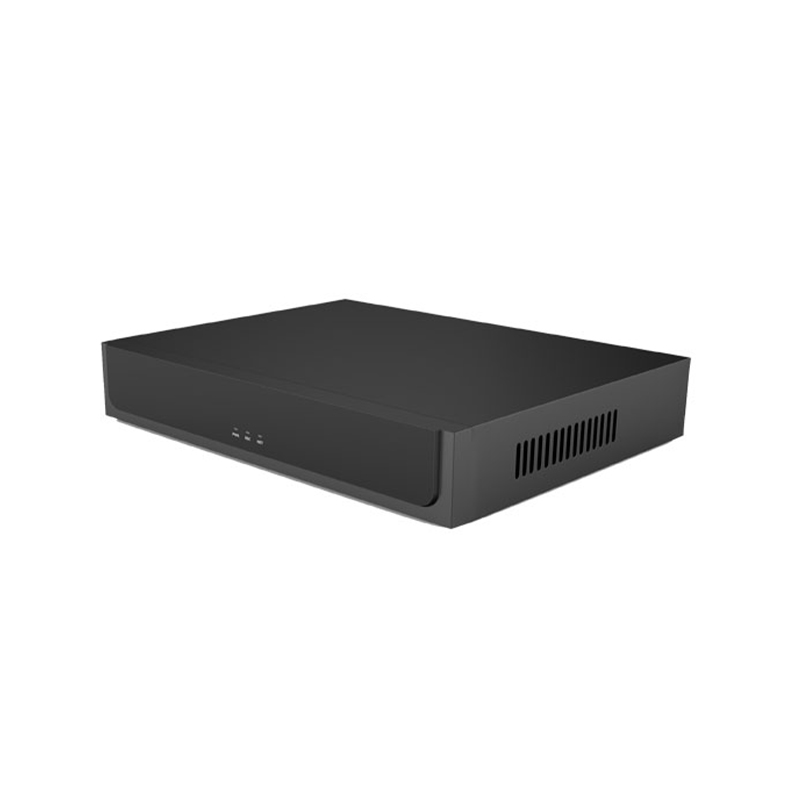

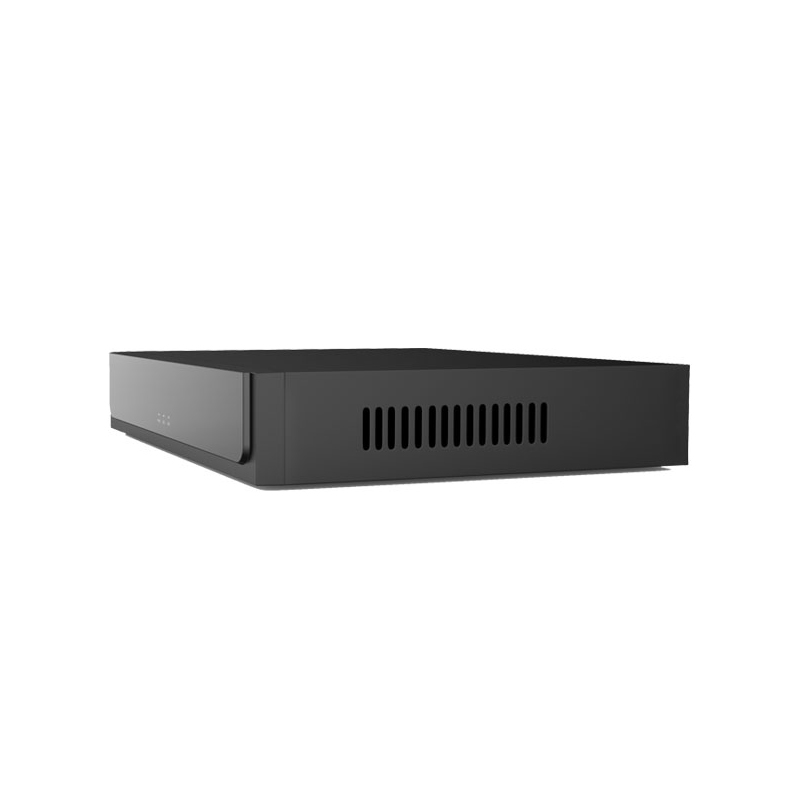

36CH HD Network Video Recorder

Specification

1 Disk 36CH NVR,H.265

Model No.

CV-NVR2036P

System Structure

Embedded LINUX design,pure hardware decode,watchdog,hard disk storage,HDMI HD display,IP network video access.

Support 36ch*4k, 25ch 12MP HD IPC access, each channel support dual stream access, support auto search,add,recording,

preview and without debugging.

Video Input

Access bandwidth 280Mbps.

1channel HDMI output,1 channel VGA output,homology with HDMI,support

Video Output

Support videolink client preview,APP preview and seconds connection

Support 3840×2160 max

Video recording resolution

Support H.265+/H.265/H.264 decoding.

Video Capacity

NVR local recording playback support 1CH 12MP/4ch 8MP/8ch 4MP

Standard G.711, support audio and video recording,support HDMI output channel preview and playback audio and video, Videolink audio and video preview and playback.

Audio

2*SATA hard disk interface,support 14TB max per pcs

Storage

Support schedule record, motion detection linkage record.

Support external USB storage devices (such as ordinary U disk, mobile hard disk) backup.

Local maximum support for 16 users.

User

1*RJ45 Ethernet interface, support 10/100M self-adaption, support TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP and so on protocols.

Network Interface

2*USB2.0 interface(rear), support for the mouse, USB upgrade, import and export.

Peripheral Interface

1* power,1*record,1*network indicator light.

Front Panel

Support preview/recording/forward/remote service, support alarm linkage, support Videolink client remote control software, support videolink cloud service.

Business Functions

-10℃～＋55℃

Working Temperature

10%～90%

Working Humidity

DC +12V/5A power

Power Supply

Support buzzer
